Unit:mm
Model | A | B | C | D | E | F | G |
CJ3812 | ∅37.8 | 7+0.2-0 | 13 | 165.1 | 139° ±5° | 54 ±0.2 | 44.2 |
Model | H | I | J | K | L | M | N |
CJ3812 | 13.3 | 10.88 ±0.5 | 30.6 ±0.3 | ∅8.70-0.05-0.13 | 38° ±1° | 40° | ∅7+0.150 |

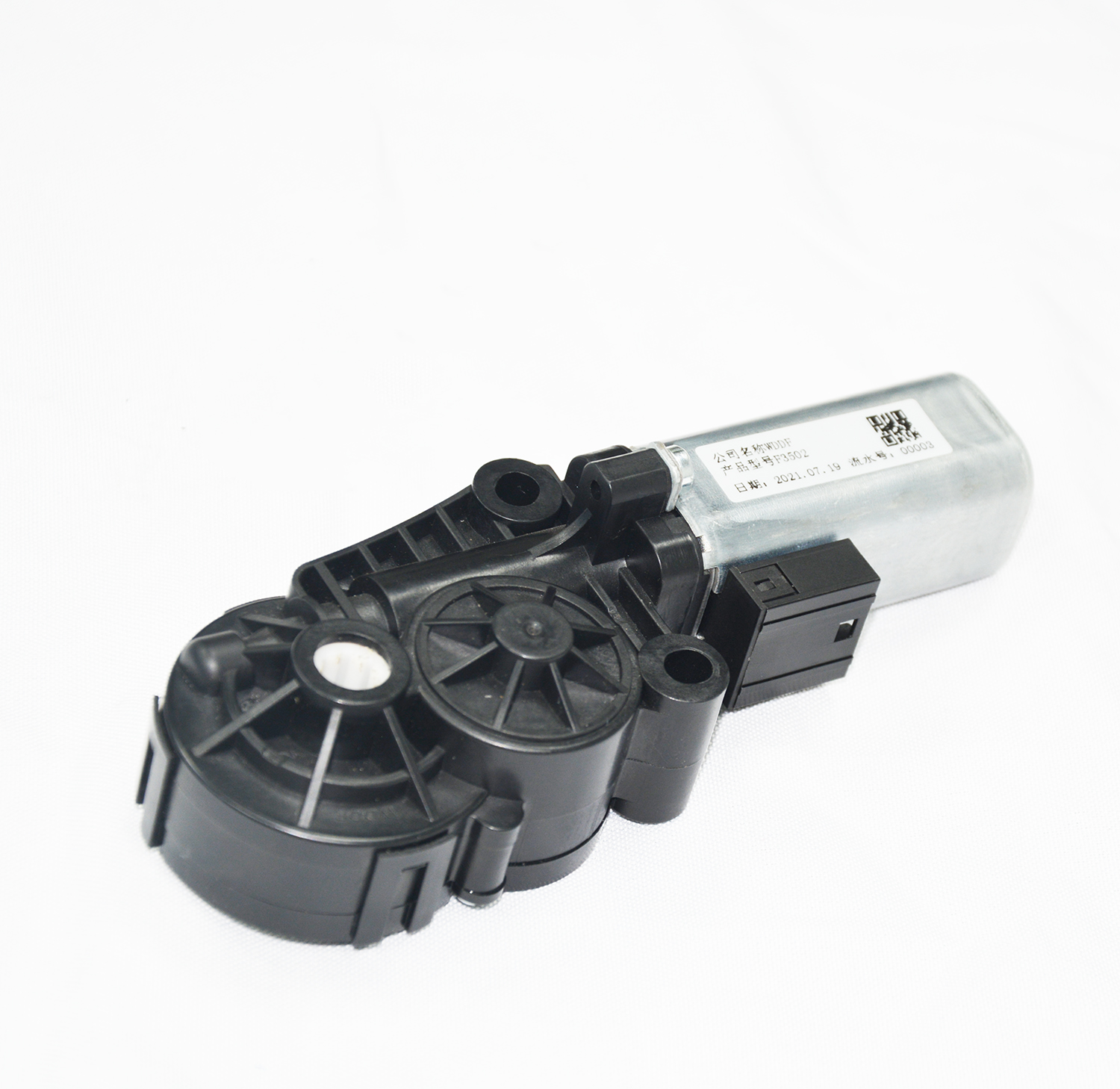

Backrest motor characteristics
Operating voltage: | 3.8~16V |
Hall IC: | PT3617 v1.05 |
Tempeter range: | -40°C~+85°C |
Reverse poiarity proteteion: | -30V |
Output leakage current: | <10 microA |
