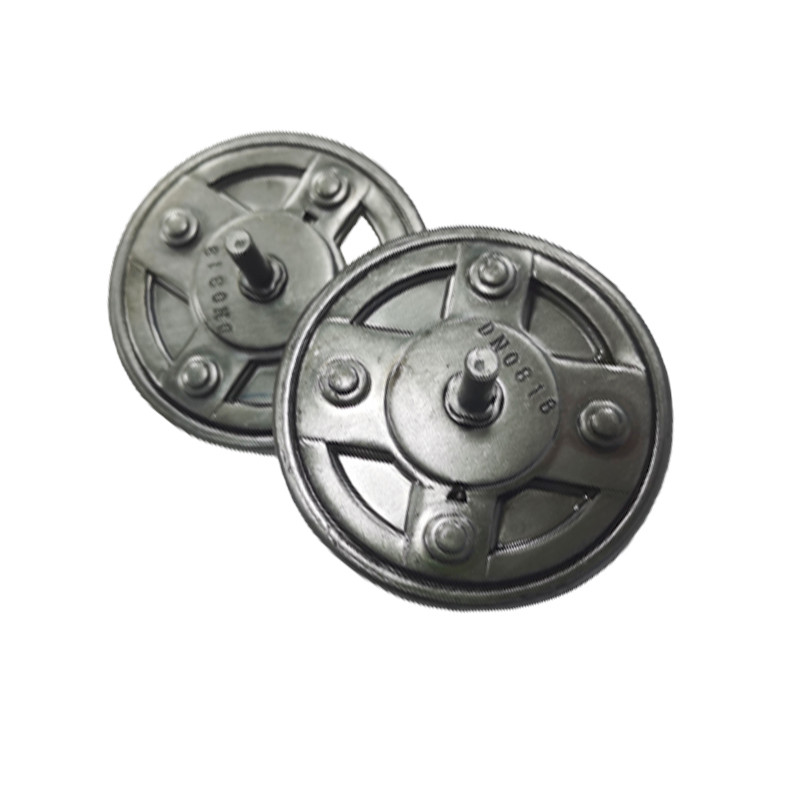

Best Quality Car Accessories Manual Seats Recliner Mechanism For Seat Back

Product name: Car Seat Manual Recliner Type: Seat Parts Material: Steel Size: overall size 83*15mm Place of Origin: Zhejiang, China Model Number: CJRB Lead Time:

Quantity(Pieces)

1-100

>100

Est. Time(days)

15

To be negotiated

Products Details

The utility model relates to a device mounted on an automobile seat for discontinuously adjusting the Angle of the backrest of the automobile seat. It is characterized by the handle or lever to control the locking or unlocking of the device to achieve the non-continuous adjustment of the Angle of the car seat back. The recovery of the car seat back is usually achieved by the recovery force provided by the spring. A device that realizes the continuous adjustment of the Angle of the backrest of an automobile seat through a handwheel or motor drive
product CJRB core part
overall size Φ83×15mm
weight 0.42kg
static strength single≥2200N.m (forward and backward)
increment 1.935°/tooth
adjusting range 100.6°
folding range 79.4°
handle operation 30°±3°
angular to release 13.4°(in theory)
rear crash 95%dummy,14~21g(ECE)
operating torque 3.25+/-0.5Nm(full open);2.5+/-0.5Nm(critical release angle position)
clearance With load ±147N on 500mm to rotation center, free play ≤ 1mm.
temperature High temp 80℃,Low temp-40 ℃
fatigue test 500N.m,25000次cycles
durability test 10000 cycles
Tooth skipping When rearward speed no more than 200º/S, locked in first tooth. (NDS standard)
