Unit：mm
| Model | A | B | C | D | E | F | G | H |
| CJ902 | 320 | Lower forward travel 190 | 380 | 62 | 380 | 308 | 27.5 | 308 |
| Model | I | J | K | L | M | N | O | P |
| CJ902 | ∅12 | forward travel 90.0 | 380 | 282 | 49 | 38 | Travel backward 0 | 20 |
| Specification | Standard |
| Max. Travel | 70mm to 240mm Recommended 70mm 190mm 240mm |
| Velocity | 18±4mm/s（13 V，load 750N） |
| Noise | ≤50dB |
| Static strength /single | forward＞22KN，rearward＞ 20KN |
| Salt spray | 96hours |
| Clearance | X：0.2-0.4mm（actual data）（F=±100 N） Y：0.3-0.5mm（actual data，elastic deformation）（F=±50 N）Overhang 40mm Z：0.1-0.25mm（actual data，elastic deformation）（F=±50 N）Overhang 40mm |
| Endurance | 11000 cycles with 75kg load, in high and low temperature |
| Temperature test | high 80℃ ，low －40 ℃ |
| Anchorage strength | Keep 16.2KN load for more than 10s. |
| Front crash | 95% dummy，50g Dummy 95%, 50g |
| Back crash | 95% dummy，24g Dummy 95%, 24g |

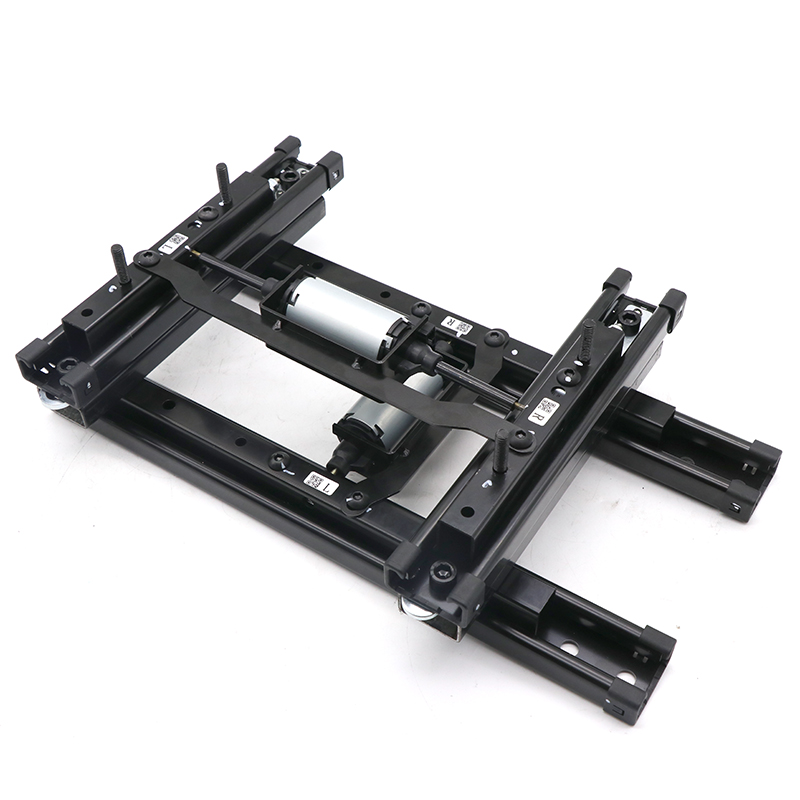

The common movement requirement of the seat is to move back and forth, and then in the MPV or the vehicle environment with more space, the left and right movement needs to be moved left and right in addition to the front and rear movement, so as to realize the two-dimensional movement of the seat in four directions.
Effect： This function can realize the convenience of getting on and off the bus, and can provide an aisle width of 18-25CM for passengers in three rows to get on and off the bus.
