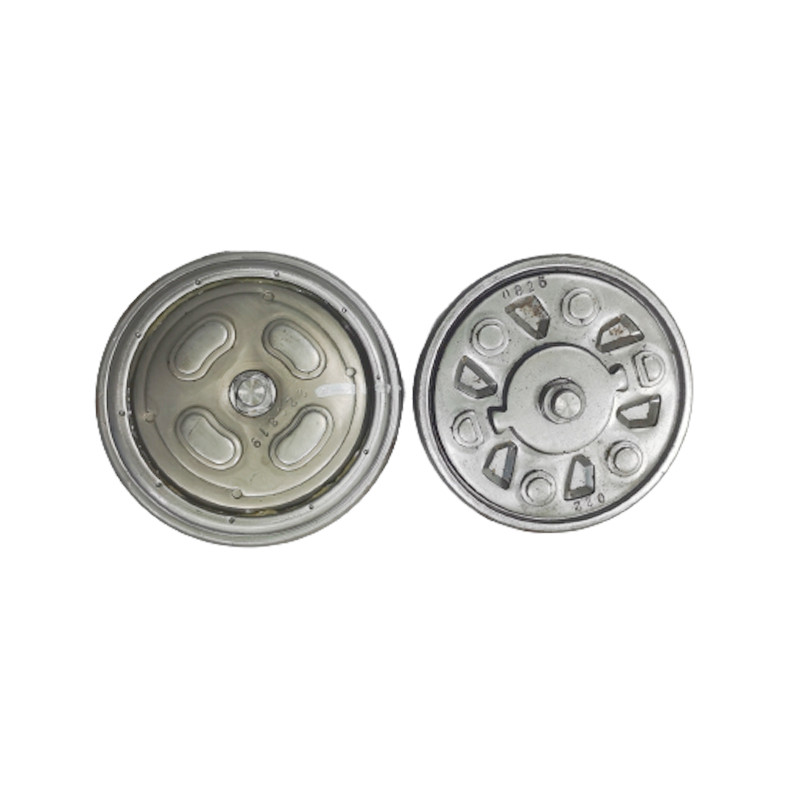

product | CJRC core part |
overall size | Φ93×15mm |
weight | 0.59kg |
static strength | ≥4500N.m(single) |
increment | 2º/tooth |
adjusting range | 100º |
folding range | 80º |
handle operation | 30º±3º |
angular to release | 14º±3º |
rear crash | 95% dummy,14~21g(ECE) |
forward crash | 95% dummy,14~21g(ECE) |
operating torque | 3.25+/-0.5N.m(full open);2.5+/-0.5Nm(critical release angle position) |
Free play of backrest | With load ±147N on 500mm to rotation center, free play ≤ 1mm. |
Temperature test | High temp 80℃,Low temp-40 ℃ |
Fatigue test | 500N.m,25000 cycles |
durability test | 10000 cycles |
Tooth skipping | When rearward speed no more than 200º/S, locked in first tooth. (NDS standard) |
