Unit：mm
| Product | Standard |
| Max. Travel | 70mm to 450mm Recommended 180mm 190mm 240mm 330mm 360mm 400mm |
| Velocity | 18±4mm/s（13 V，load 750N） |
| Noise | ≤50dB |
| Static strength /single | forward＞22KN，rearward＞ 20KN |
| Salt spray | 96hours |
| Clearance | X：0.2-0.4mm（actual data）（F=±100 N） Y：0.3-0.5mm（actual data，elastic deformation）（F=±50 N）Overhang 40mm Z：0.1-0.25mm（actual data，elastic deformation）（F=±50 N）Overhang 40mm |
| Endurance | 11000 cycles with 75kg load, in high and low temperature |
| Temperature test | high 80℃ ，low －40 ℃ |
| Anchorage strength | Keep 16.2KN load for more than 10s. |
| Front crash | 95% dummy50g Dummy 95%, 50g |
| Back crash | 95% dummy，24g Dummy 95%, 24g |

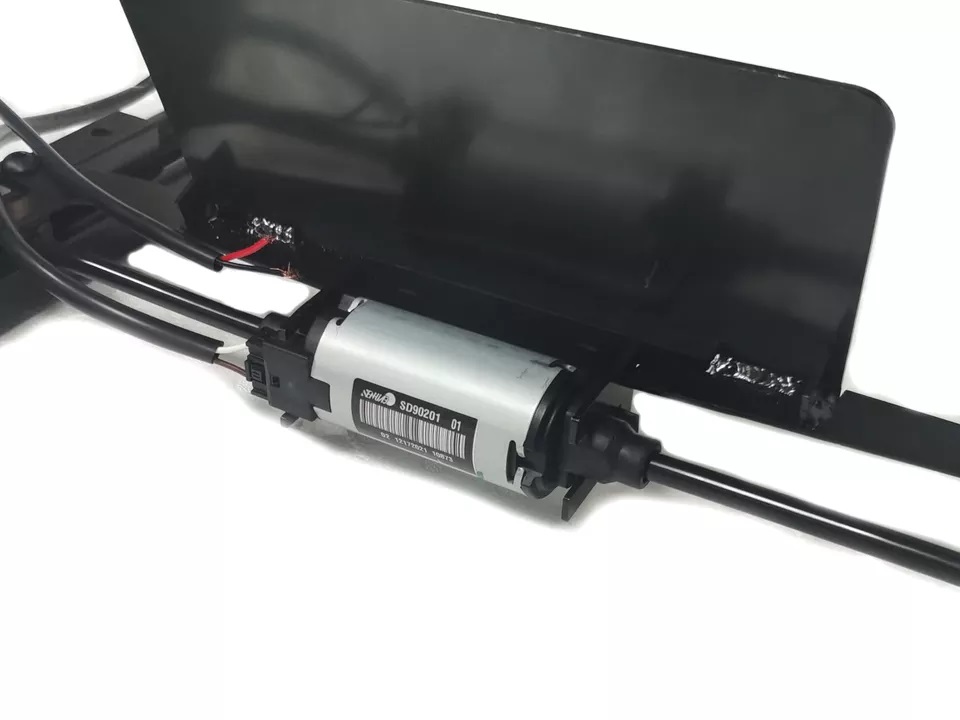

| Horizontal motor assembly characteristics(test voltage 13.5V) | |||||||
| Carrying idler | Load(50mNm) | Switch on | Noise(dB) | ||||
| Current(A) | Speed(r/min) | Current(A) | Speed(r/min) | Moment of force(mNm) | Current(A) | ||
| SPEC | 1.5MAX | 3200±12% | 4MAX | 2850±12% | 380 | 15MAX | 43 |
| Central value | 0.7 | 3200 | 1.9 | 2880 | 420 | 10.5 | 38 |
| Weight(g) | 325g | ||||||
